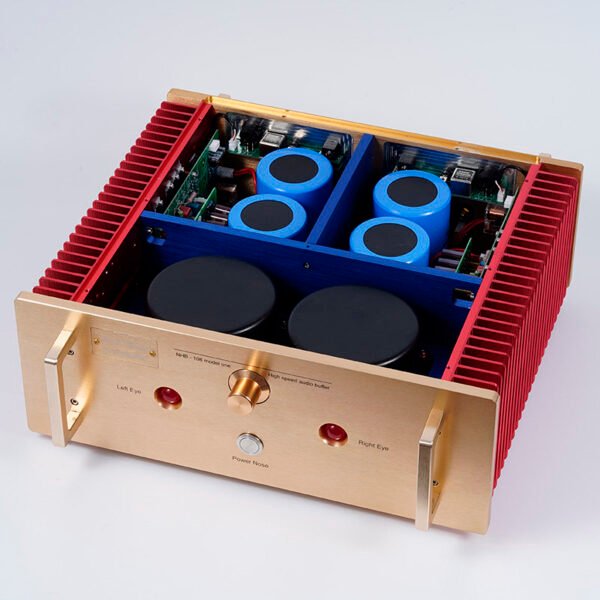

BRZHIFI Reference Da Xiao Line 108 No Negative Feedback Amplifier Circuit Post-stage Household HIFI Power Amplifier

Welcome to Berlasse High Fidelity Audio Factory Direct Sales Store! Quality assurance, fast delivery!

In order to provide you with a better shopping experience, please allow me to explain the following information to you to avoid any unnecessary trouble:

1. All products in our store do not include: customs duties, clearance fees, and other taxes. Unless otherwise specified, we will declare based on the actual price of the goods.

2. We hope you are aware of the local customs and tax policies. We do not accept returns due to tariff issues; (Some countries/regions offer prepaid tariff options on the platform).

3.To ensure that you receive the product smoothly, please closely monitor your email and platform messages after purchasing. If there is any unclear address or changes in logistics policies, we will notify you as soon as possible and look forward to your reply.

The highly acclaimed NHB-108 minimalist broadband circuit features a unique revolutionary design with strong current output capability. There is no global negative feedback, no negative feedback or compensation network in the input and output stages, and an open-loop design in the output stage. There are only 6 transistors per polarity in the entire signal path. The latest SCNP enhanced version of darTZeel provides better signal timing and huge current peaks.

The production process uses a silver tin wire white light soldering station for static free soldering. Distortion, signal-to-noise ratio, separation, and sound quality testing are all carefully monitored by dedicated personnel to ensure foolproof performance.

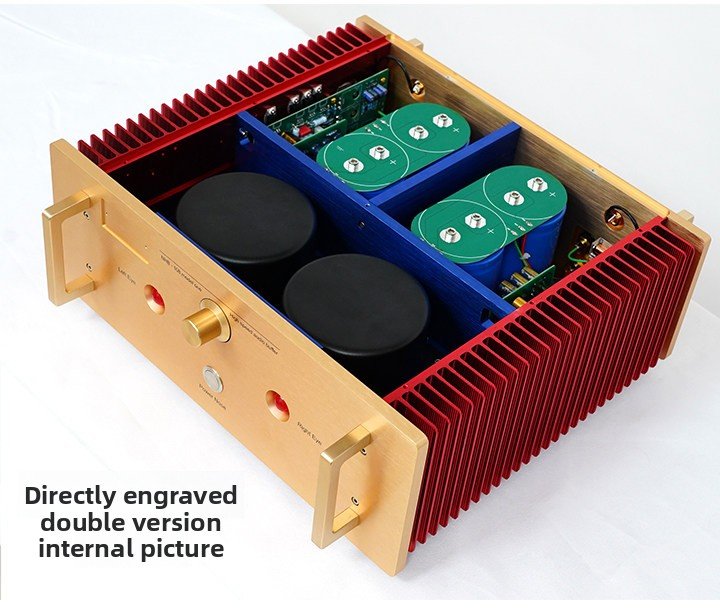

There is currently a version of the direct cut dual parallel amplifier tube, which changes the output tube from one pair to two pairs, reduces internal resistance, increases output current, and has better low-frequency control

Material selection:

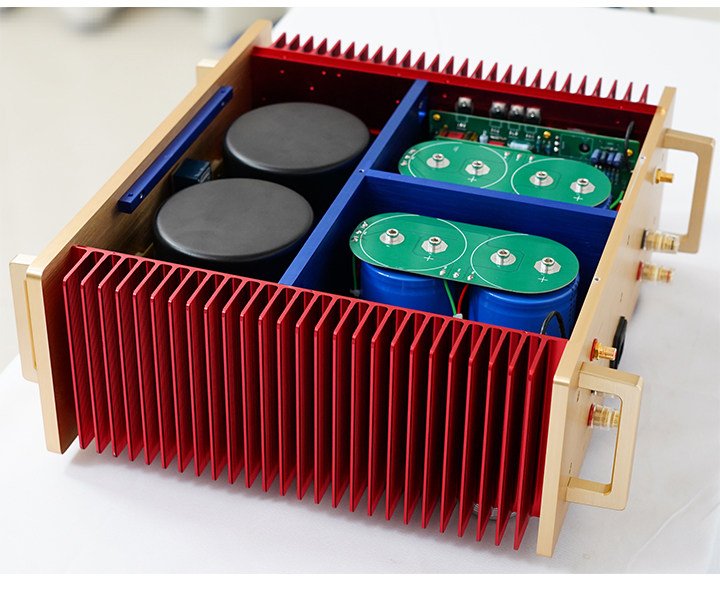

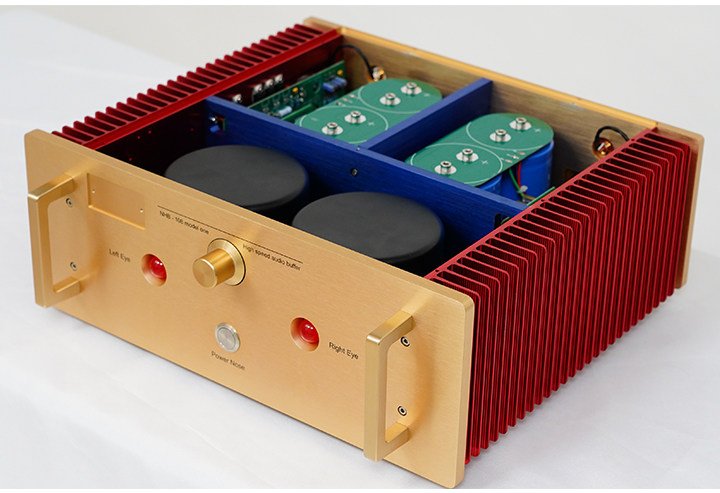

1. High imitation all aluminum process chassis, with a straight cut version weighing about 26KG kg and exquisite appearance

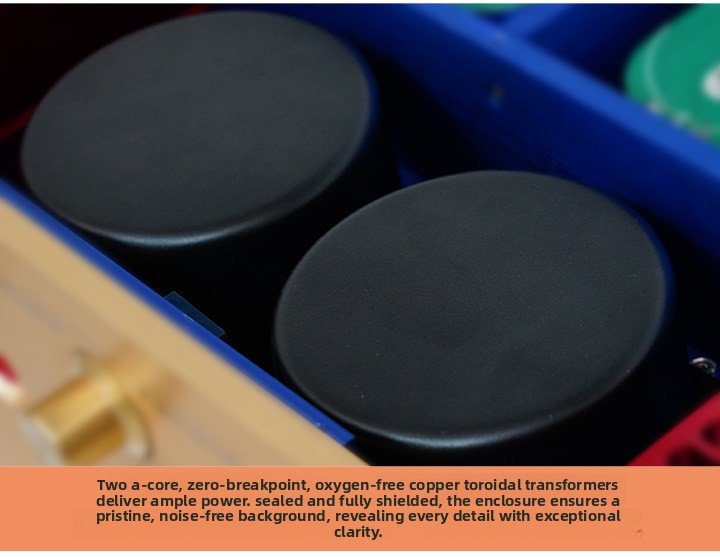

2 oxygen free copper 300w ring transformers, independent power supply for left and right channels, ensuring sufficient separation and energy

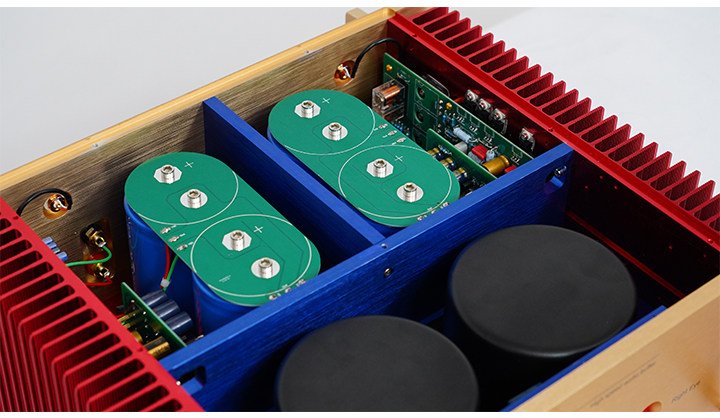

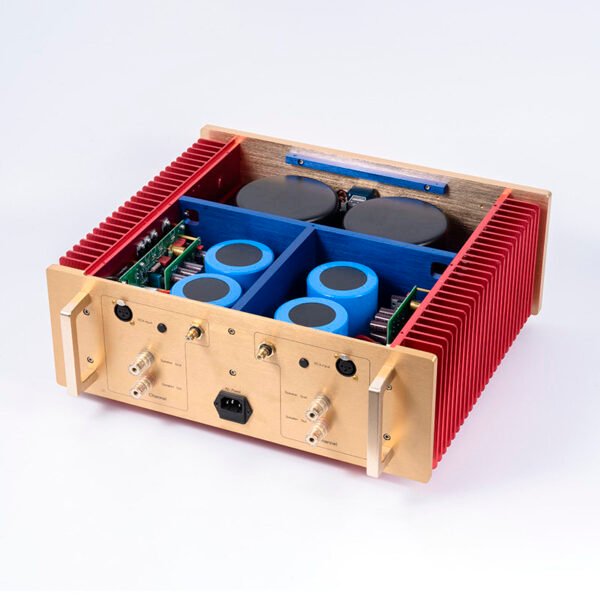

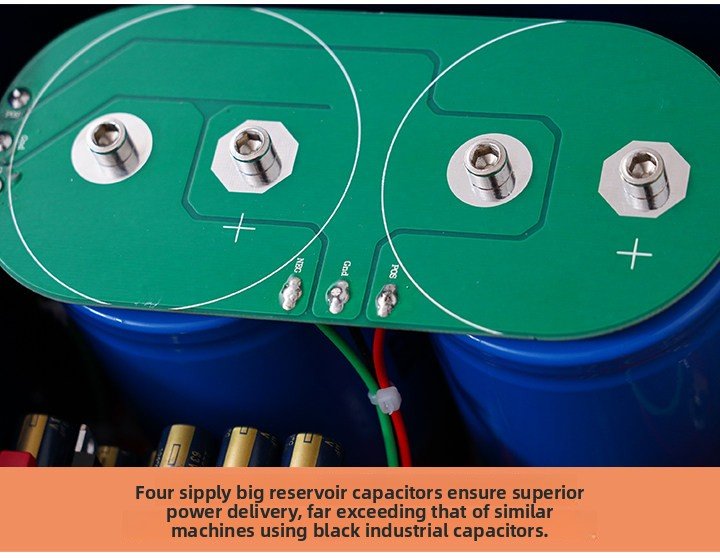

3 classic versions with 16 original ELNA AUDIO 10000UF capacitors forming a filtering array, and 4 direct engraved versions with Sibi or BC 75V39000UF capacitors
4. Japan Omron horn protection circuit and high-power soft start circuit. Ensure that both the machine and speakers are operating in a safe state

Input Impedance: 100K ohms
Line Gain:+26dB
Total harmonic distortion+noise (THD+N): -100dB@no load ; -60dB @8ohm
Separation (CrossTalk): -125 dB
Signal to Noise Ratio (SNR): 115dB
Freq. Response: 10Hz~20KHz
Output power (Max. RMS Power): 150W @ 8ohms; 200W @4ohms

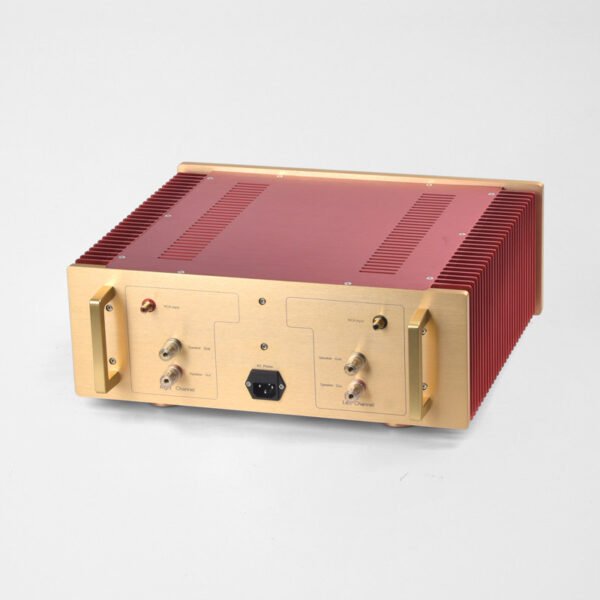

Overall size: 440x330x160 (W * D * H)
Weight: 28KG (direct engraved version with packaging)

Width 440mm x Depth 380mm (including front and rear handles 410mm) x Height 160mm (straight cut version)
